ARGUS enables the interactive exploration and debugging of all components of the data ecosystem needed to support intelligent task guidance. ARGUS has two operation modes: “Online” (during task performance), and “Offline” (after performance). Users can use these two modes separately if needed, for instance, to perform real-time debugging through the online mode. In another usage scenario, users may start by using the online mode to record a session and then explore and analyze the data in detail using the offline mode.

To effectively model performer behavior, we must determine a method of summarizing and comparing performer behavior across sessions. This necessitates a meaningful way to compare multimodal time series data (e.g., gaze origin and direction, acceleration, angular velocity, fNIRS sensor readings) of different durations. HuBar provides a visual analytics tool for summarizing and comparing task performance sessions in AR, highlighting correlations between cognitive workload and performer motion data.

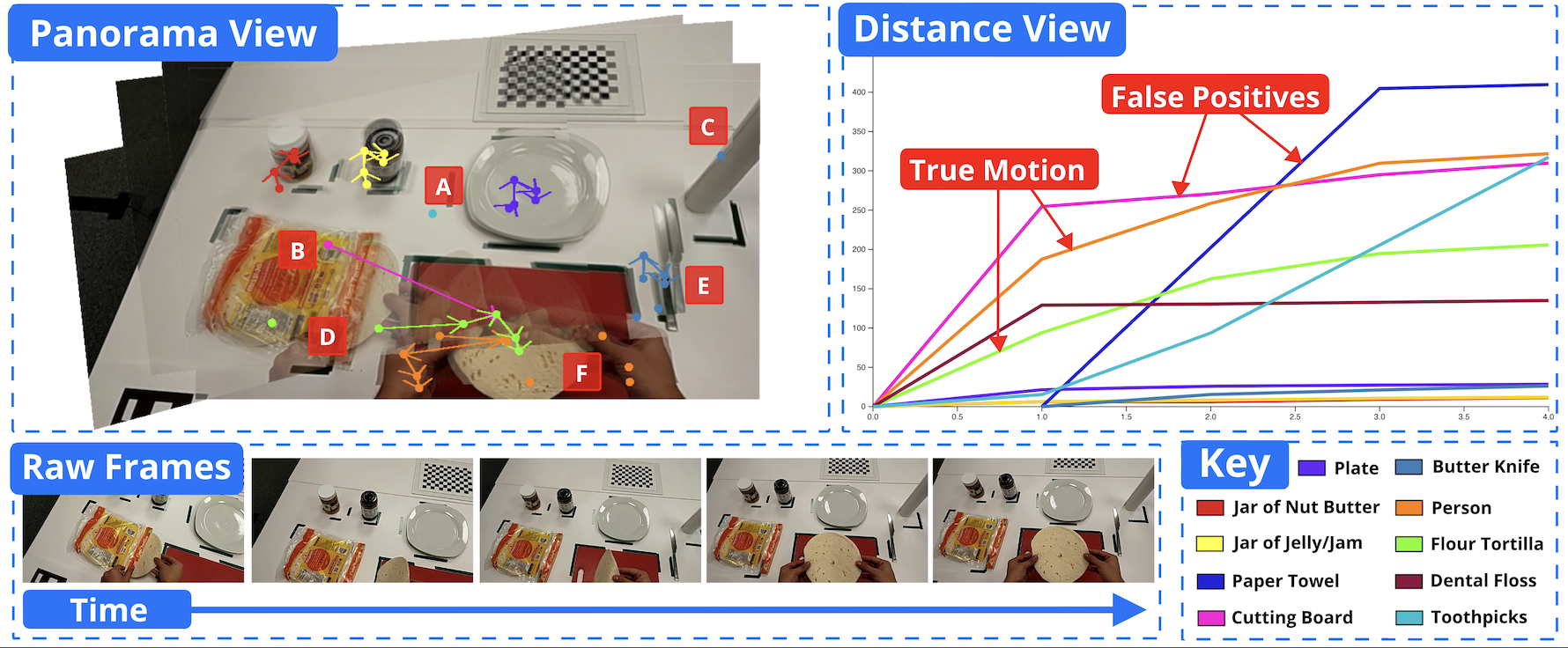

Inspired by the Panorama View of ARGUS, we built ARPOV: a standalone visual analytics tool that enables troubleshooting of object detection results, with features tailored to analyzing object detection (ground truth and predicted bounding boxes) performed on RGB videos, such as those captured by current AR headsets. This video must contain multiple views of the same scene but need not be captured by a stereoscopic camera. The following sections describe the primary components of the ARPOV interface, all of which are linked and interactive.

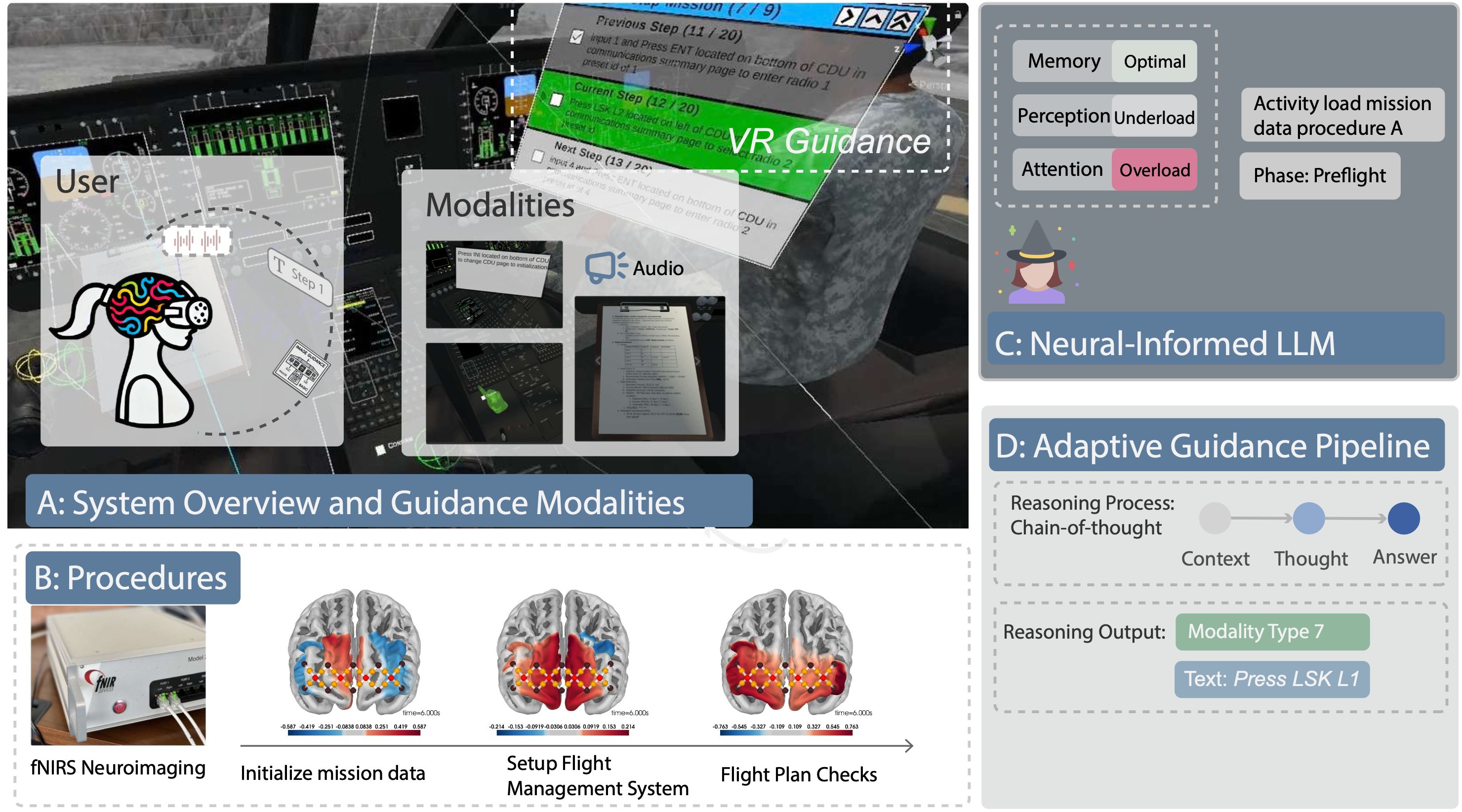

To build an adaptive guidance system for aviation training, we developed AdaptiveCoPilot, a neuroadaptive, multimodal feedback system designed for a VR cockpit environment. This system dynamically adjusts task guidance based on pilots’ cognitive states, which are measured using fNIRS. By monitoring cognitive facets such as working memory, perception, and attention, AdaptiveCoPilot adapts the modality and content of feedback in real time, delivering visual, auditory, and text- based guidance tailored to the user’s workload. The design was informed by a formative study involving three pilots, which identified areas of high cognitive demand in aircraft operation and the challenges of selecting appropriate feedback modalities. These findings guided the development of neuroadaptive strategies to maintain optimal workload states and improve task performance during complex aviation procedures.

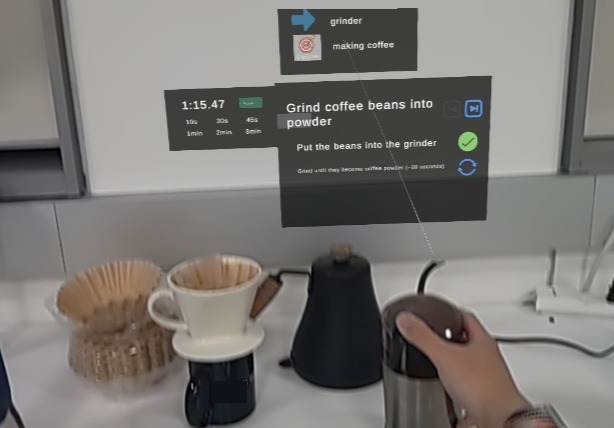

To build the adaptive UI, we propose a belief-desire-intention (BDI) user-modeling-based proactive assistance method called Satori, designed to dynamically adjust task guidance based on the user’s context, environment, and actions. This design draws upon insights from two formative studies aimed at identifying the challenges and opportunities in creating adaptive AR interfaces.

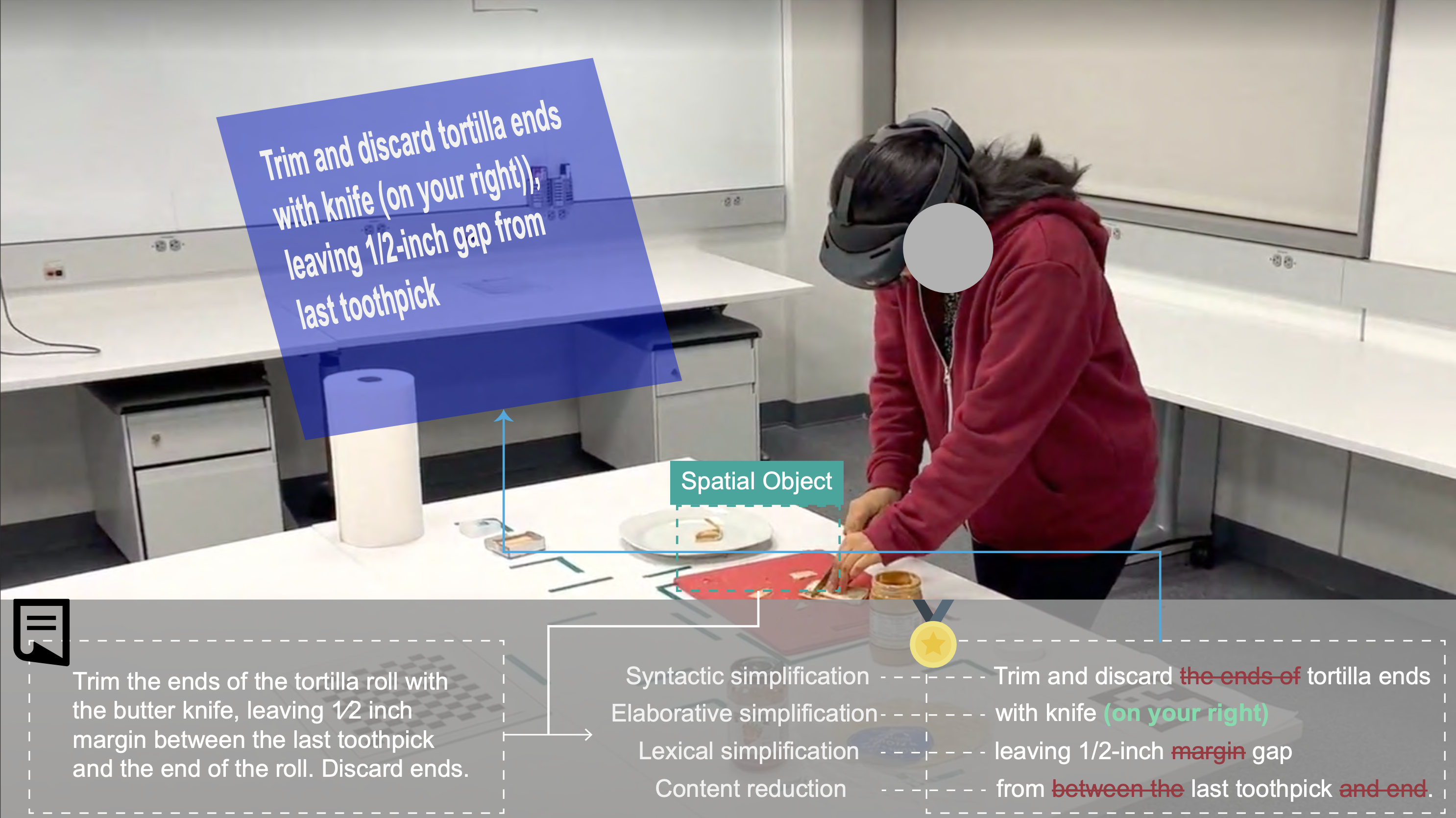

The AR interface must effectively support task performance. To achieve this, we focused on optimizing both text and graphic displays for each task step. To enhance text display, we implemented ARTiST, an automated text simplification system designed to produce shorter and more understandable instructions. This approach aims to improve task efficiency by ensuring that users can quickly grasp the necessary information without being overwhelmed by complex language.
